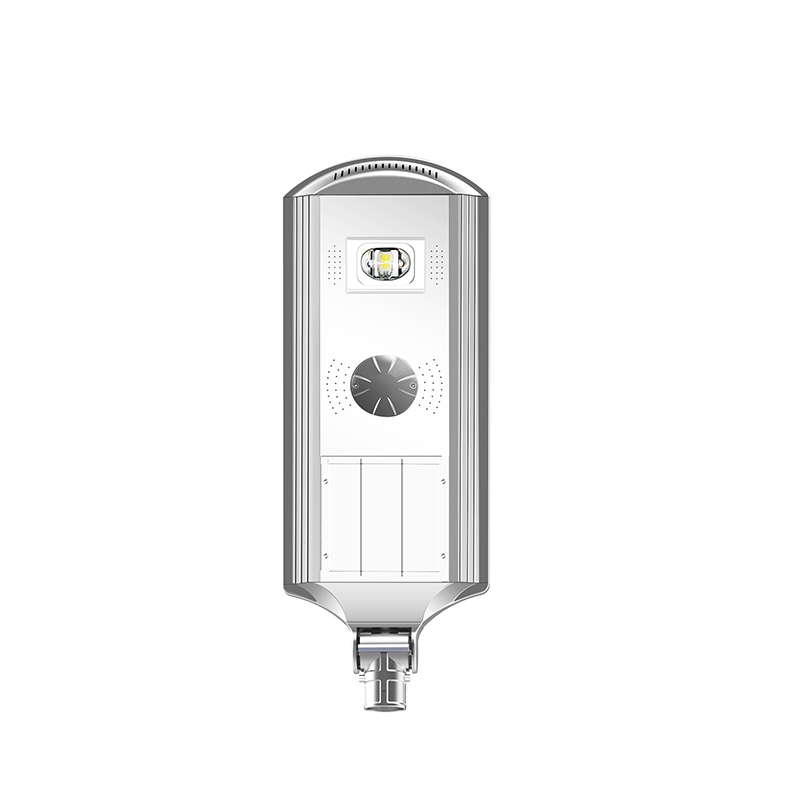

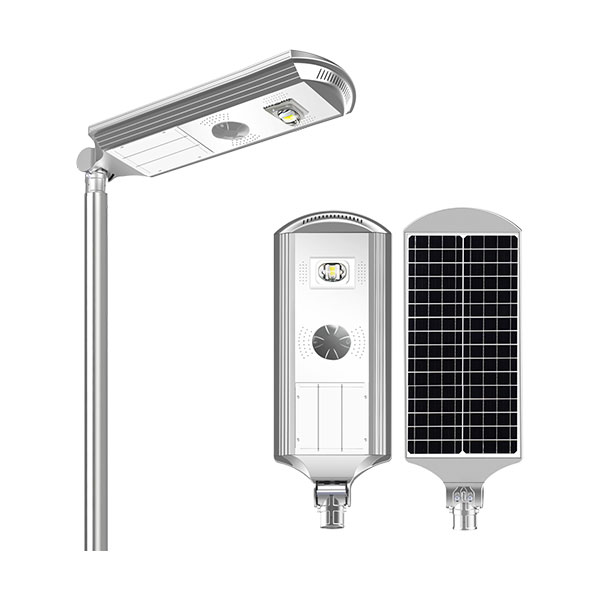

Z66 30W COB Specification

Detailed Description

1.1 Technical Parameters

Model：	XT1050SELD30-J
LED Quantity：	1
Module Quantity (pcs)：	1
Power：	30W

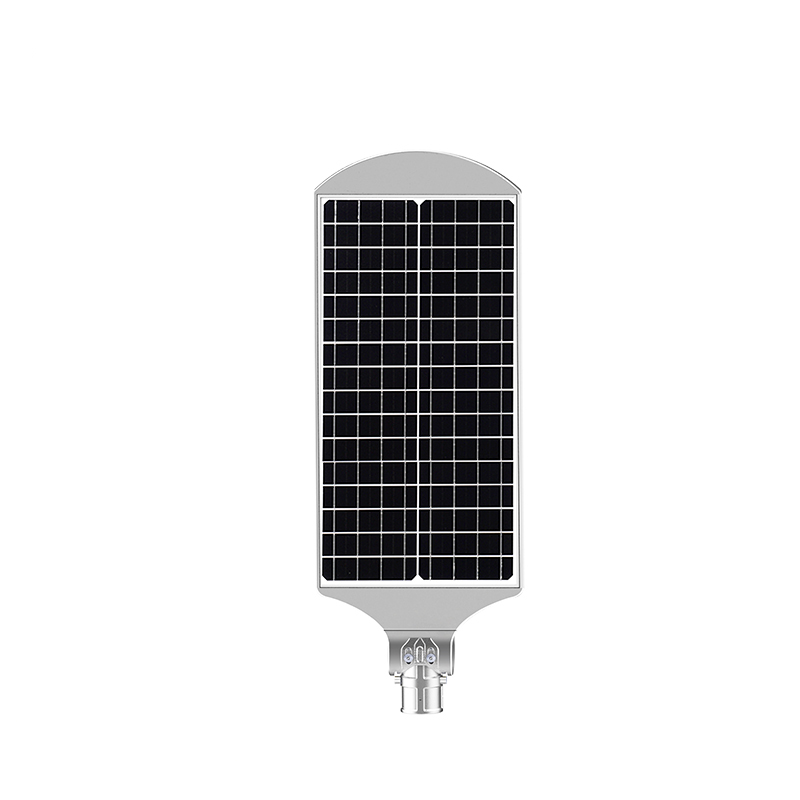

Solar Panel：	Monocrystalline Silicon 18V/45W

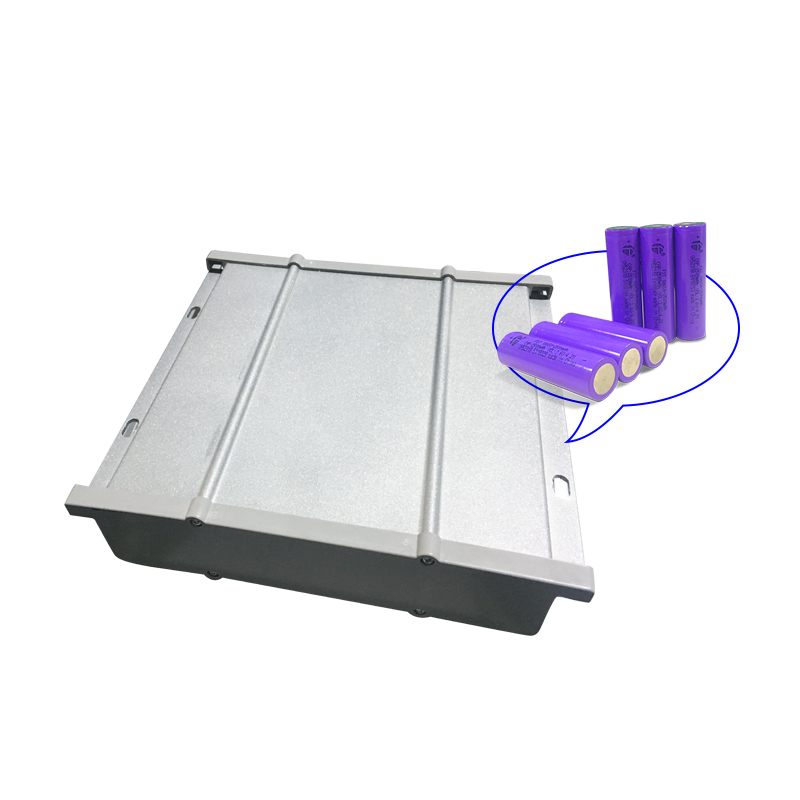

Battery：	Grade A Lithium Ion Battery 20Ah/12V
Adjustable Angle of Module(±15°)：	Yes
Control Mode：	Light Control+Time Control
Working time under full power：	12h
Working time under intelligent power：	36h
Charging time(1000W/m2)	6h
On-off threshold level：	on≦8LUX，OFF≧10LUX
Secondary lighting distribution：	Borosilicate
Beam Angle：	C0~180 160°/ T90~270 80°
Protection Grade：	IP65
Photoelectric Parameter:
Color Temperature(K):	3000-6500K
CRI(Ra):	70
Lumens(lm):	3200-4200l
Intelligent Mode:	Yes
Working under rainy days:	7-10 Days
Package:
Net Weight (kg):	10.0kg±5%
Gross Weight (kg):	21.5kg±5%(2pcs/box)
Product Dimension (mm):	1050×370×86mm±5%
Package Dimension (mm):	1070×225×445mm±5%
Quantity in 20/40 Feet Container(Accessories)	400/1100PCS
Quantity in 20/40 Feet Container(Accessories)	500/1210PCS
Environmental Temperature
Discharging Temperature (℃):	-20～60
Charging Temperature (℃):	-20～60
Storage Temperature (℃):	0～45
Installing Parameter:
Diameter of Pole:	Ø60mm
Screw Fixation:	Yes
Wind resistance level(km/h):	209
Installation Height (m):	5-6
Installation Distance(m):	20-25

1.2 Product Dimension：（mm）

1.3 Light Distribution

1.4 Light Pole Sketch

1.5 30W Illumination Simulation-6m

2 Package
2.1 Package Sketch

2.2 Package List

2.3 Pallet Sketch
Pallet Size：945×1100×120mm
Goods with Pallet Size：945×1100×1050mm
Quantity：10Boxes×2pcs/Box=20pcs
