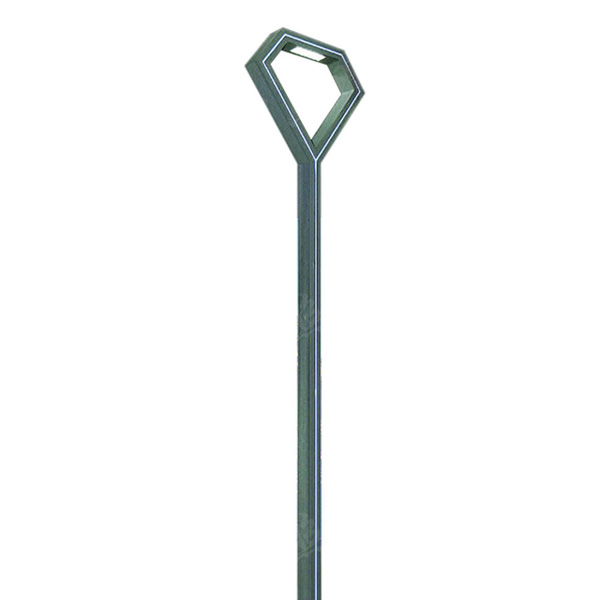

Electric LED Landscape Light
| Model | XT260LD15-D | XT311LD30-D | XT391LD40-D | |||
| Power | 15W | 30W | 40W | |||
| Power factor | ≥0.90 | ≥0.90 | ≥0.90 | |||
| Input voltage range/frequency | AC85-265V/50-60Hz | AC85-265V/50-60Hz | AC85-265V/50-60Hz | |||
| Luminous flux | 1,500 lm | 3,000 lm | 4,000lm | |||
| Type of light source | NOCOB | NOCOB | NOCOB | |||
| Quality of Light source | 15 | 28 | 40 | |||
| Color temperature | 5500K±200K | 5500K±200K | 5500K±200K | |||
| CRI | 70 | 70 | 70 | |||
| Luminous efficiency | 130 lm/W | 130 lm/W | 130 lm/W | |||
| Transparent materials | PC | PC | PC | |||
| Emitting angle | C0~180 140° / T90~270 70° | C0~180 140° / T90~270 70° | C0~180 140° / T90~270 70° | |||
| Chip specifications | 2835 | 2835 | 2835 | |||
| Lamp color/Coloe card | Sliver Gray/RAL 7001 | Sliver Gray/RAL 7001 | Sliver Gray/RAL 7001 | |||
| Protection grade | IP 65 | IP 65 | IP 65 | |||
| Environment temperature | ‘-40~+55℃ | ‘-40~+55℃ | ‘-40~+55℃ | |||
| Quality of Module | 1 | 1 | 1 | |||
| Mounted diameter | Ф35mm | Ф35mm | Ф35mm | |||
| Lantern of wiring | 60245 IEC57 3×1mm2 length0.6m | 60245 IEC57 3×1mm2 length0.6m | 60245 IEC57 3×1mm2 length0.6m | |||
| Packing dimension | 260×110×56mm | 311×136×56mm |
391×162×67mm
|
|||
